Laminaria rodriguezii, a Mediterranean deep-water kelp is in danger in the Adriatic Sea – part II

tempo di lettura: 14 minuti

.

livello medio
.
ARGOMENTO: BIOLOGIA MARINA
PERIODO: XXI SECOLO
AREA: MAR MEDITERRANEO
parole chiave: alga.

Fishery and biocenology expeditions in 1950s and early 1960s
A fishery expedition in the area of Biševo in 1953 detected a shallower (93–65 m) community, “densely overgrown” with L. rodriguezii (Grubišić and Gospodnetić 1955; Table 1). During the biocenology expeditions performed in 1957–1961, the occurrence of L. rodriguezii was confirmed in Jabuka at 5 out of 6 locations where it had been found during the Hvar expedition, and collected at one new location at Jabuka (Fig. 1a; Table 1). During these expeditions, L. rodriguezii was categorized in the lowest abundance category with an average number of specimens of less than 10 per transect.

Unpublished records and expeditions MEDITS from 1998 to 2014
In 1998 a thallus of L. rodriguezii was collected near Palagruža Island by a grab at 118 m depth. Since 2002, during 14 annual MEDITS fisheries expeditions (including data from 2015) with more than 225 transects inside the documented historical distribution range of L. rodriguezii, the alga was collected on a total of seven occasions during bottom trawling transects between 155 and 200 m, all in the area of Palagruža (Fig. 1b; Table 2). On these seven occasions, L. rodriguezii was very rare and present only in fragments (Fig. S1B). MEDITS expeditions (Bertrand et al. 2002) have covered 835 transects in Croatian waters since 2002.

Questa immagine ha l'attributo alt vuoto; il nome del file è Screenshot-2024-05-26-124134.png

Table 2 Recent records of Laminaria rodriguezii in the Adriatic Sea (1998 –2013) All were in the Palagruža area. Prevailing sediment type on MEDITS locations is defined indirectly on the basis of collected benthic invertebrates. Depths recorded by MEDITS expeditions must be considered with caution as these findings might represent drift material from shallower areas

Sampling by ROV
During a total of 14 ROV diving hours on coralligenous and detritic substrata between 60 and 130 m in the areas of Jabuka, Biševo and Palagruža in 2010, we encountered two thalli of L. rodriguezii, both close to Palagruža island at around 90 m depth (Figs. 1c, S1C, D; Table 3).

Questa immagine ha l'attributo alt vuoto; il nome del file è Screenshot-2024-05-26-130437.png

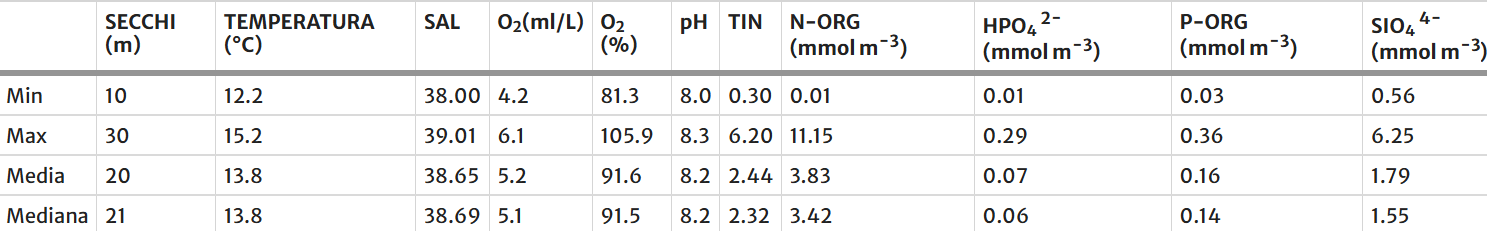

Oceanographic parameters determined in the bottom layer (100 m) of the water column collected at oceanographic station CJ011 (Fig. 1c; bottom depth at 102 m) during 1994–2013

Table 3

This station is within the present distribution area of Laminaria rodriguezii

Table 4

Accessions of sequences, with new sequences in bold face

Sample

ITS

Rubisco spacer

5′-COI

Laminaria rodriguezii Croatia

LN896341

LN896348

LN896336

Laminaria rodriguezii Hecate

LN896342

LN896349

ND

Laminaria abyssalis Lü1291

LN896343

LN896350

LN896337

Laminaria ochroleuca BR93

LN896344

LN896351

LN896338

Laminaria ochroleuca GAL98

LN896345

LN896352

LN896339

Laminaria pallida NAM93

LN896346

LN896353

LN896340

Laminaria pallida SAF01

LN896347

LN896354

ND

Laminaria digitata

FJ042772

AY851559

AJ344328

Laminaria digitata

AF319014

AF318971

JN099683

Laminaria hyperborea

AY441771

AF318972

FJ409154

Laminaria setchellii Silva

AF319016

AF318973

GU097710

Laminaria sinclairii

AF319017

AY851558

KJ960264

Laminaria ephemera Setchell

FJ042733

AY851557

FJ409152

Laminaria solidungula J. Agardh

FJ042757

AY851556

FJ409161

Laminaria yezoensis Miyabe

FJ042749

AY851555

FJ409167

Saccharina japonica (Areschoug) Lane, Mayes, Druehl & Saunders

DQ143070

DQ143101

AP011493

Saccharina sessilis (C. Agardh) Kuntze

FJ042748

AY851553

FJ409207

The data for the different markers in the new sequences are from the same sample, whereas in the published sequences they are usually from different specimens of the same species – ND no data

Information from fishermen
Professional fishermen from the island of Lastovo, who perform trammel net fishing, provided personal accounts in 2011. They regularly collected L. rodriguezii as by catch near Palagruža Island (Fig. 1c; Table 2) at depths between 90 and 110 m. Our confidence in these communications is high as the fishermen described L. rodriguezii as a “flat brown seaweed with characteristic roots which firmly entangle into the net”. Contrary to this, fishermen from trawling boats operating in the area of Jabuka and Biševo did not report any findings of L. rodriguezii.

Oceanographic characteristics of the Palagruža area
Long-term data on oceanographic parameters are summarized in Table 3 and Fig. S4. The high-resolution temperature time series recorded by the ADCP at 163 m, less than 1 m above the sea bottom (Fig. S5) showed temperature oscillations between 10.67 (March 2012) and 14.63 °C (end of October 2012), which is in accordance with the long-term measurements (Fig. S4). The distribution of near-bottom current speeds and directions at the ADCP station is shown as a rose plot in Fig. S6. Current direction was stable, the direction of the flow was in >65 % between east and southeast, indicating predominant outflow across the Palagruža Sill, towards the South Adriatic Pit. The strongest currents were also measured for these directions, with maximum speeds reaching 44 cm/s. Generally, near-bottom currents were relatively strong, with speeds larger than 10 and 20 cm/s encompassing more than 40 and 11 % of all measurements, respectively. They were particularly energetic between March and July 2012 (Fig. S7), when the dense water outflow was the strongest. The average bottom current speed during 9 months was 10.1 cm/s.

Molecular systematic analyses
A total of 6000-bp DNA sequences for six markers (see “Methods” section; Table S3) were produced from the L. rodriguezii field specimen from Croatia. From the herbarium specimen of L. rodriguezii from the western Mediterranean, we generated a short sequence of 129 bp in the highly variable first part of ITS1. It was identical to the sequence from Croatia confirming con-specificity of the two samples. For the western Mediterranean specimen, also a Rubisco spacer sequence was produced which resembled the sequence from Croatia except for two substitutions. In addition, sequences of the highly variable “barcode” markers ITS, Rubisco spacer and 5′-COI were generated for L. ochroleuca, L. pallida and L. abyssalis. In the last species, the ITS sequence generated for our gametophyte culture was highly similar to four sequences recently published for field specimens from Brazil (Marins et al. 2012).

In the sensitive, variable markers ITS and Rubisco spacer, L. rodriguezii showed most similarity with a cluster formed by L. ochroleuca, L. pallida and L. abyssalis (henceforth OPA clade), followed by L. digitata (Hudson) Lamouroux and L. hyperborea (Gunnerus) Foslie (Table S3). In the mitochondrial marker (5′-COI), genetic distances within the OPA cluster were ≤ 1.6 %, and L. rodriguezii was as divergent from the OPA clade (3.3–4.4 %) as from L. digitata (0.44 %) and L. hyperborea (0.39 %). Analyses of the combined dataset of ITS, Rubisco spacer and COI consistently placed L. rodriguezii in a highly supported clade together with the OPA clade (Fig. 2). In the more conservative rbcL and SSU, many species from the Laminariales showed highly similar sequences but phylogenetic analyses were not performed because sequences of the OPA clade were unavailable.


tassonomia-lamin-med

Fig. 2 Phylogenetic tree of Laminaria spp. based on a neighbour-joining analysis of Kimura-2-parameter distances of concatenated entire ITS (763 bp), Rubisco spacer (553 bp) and 5′-COI (658 bp) sequences. Two species of Saccharina served as outgroup (Lane et al. 2006). Parsimony and maximum likelihood analyses of the same dataset, as well as analyses of data of the single markers, gave similar results, in most cases placing L. rodriguezii in a highly supported clade together with L. ochroleuca, L. pallida and L. abyssalis. Numbers at nodes indicate bootstrap support from 1000 resamplings for distance, parsimony and likelihood analyses, respectively. Accessions of sequences are provided in Table 4

Discussion
Historical data from herbarium samples collected from ca. 1896 until 1963 and from fishery expeditions (1949–1961) (Tables 1 and S2) indicated that Laminaria rodriguezii had three principal areas of distribution in the Adriatic Sea: Jabuka Pit and around the islands of Biševo and Palagruža, all of which are located in the central part of the Adriatic Sea (Fig. 1a). Fisheries expeditions from the 1960s until the early 2000s did not pay attention to L. rodriguezii. In the same period, commercial trawling effort increased, undoubtedly with consequences for benthic communities (Mannini and Massa 2000; Jukic-Peladic et al. 2001; Mannini et al. 2005). We thus consider the data on the distribution of L. rodriguezii in the Adriatic Sea until the early 1960s as historical range or zero state, similar to the zero state for bottom trawling of commercial fish species (Jukic-Peladic et al. 2001). Recent data on the distribution of L. rodriguezii in the Adriatic Sea reveal that the distribution range of the species has drastically declined within the last 40 years (Fig. 1). Since 2000, the MEDITS project has surveyed almost the same transects on which L. rodriguezii was collected during the Hvar expedition in the late 1940s. Even though L. rodriguezii was one of the target species, the alga was recorded only at Palagruža. In the last 50 years, it has not been officially recorded in the area of Jabuka Pit where it was repeatedly found in the late 1940s and 1950s. Taking into account that the areas of Jabuka and Biševo have been well investigated recently through fisheries surveys, but also in particular during the deep-water brown algal expeditions using ROVs, it can be said with high confidence that L. rodriguezii is no longer present at Jabuka and Biševo. Consequently, the extent of occurrence (as defined by IUCN 2012) of this alga within the Adriatic Sea has shrunk by more than 85 %, from 8700 km2 (area covering all records) to 1200 km2 (historical and recent records in the Palagruža Island area).
There is no information about historical or recent population densities of L. rodriguezii around Palagruža Island. The latest information provided by fishermen operating in the area suggests that certain dense and healthy populations still exist in a spatially reduced area SE of Palagruža Island, while in the wider area of Palagruža the species is rare. Low abundance in a wider area of Palagruža is indicated by sporadic bycatch of the alga during the MEDITS project, with just a few fragments collected in the last 14 years (Fig. 1b, c; Table 2). Additional underwater ROV surveys would be required for more precise information on the condition of the populations at the sites suggested by fishermen.

As Jabuka Pit is one of the most important trawling areas in the Adriatic (UNEP/CBD/EBSA/WS 2014), the disappearance of L. rodriguezii is likely a result of bottom trawling activities. Mechanisms of impact would be direct, by removal of algae as bycatch, and indirect by stirring up sediments (Jones 1992; Palanques et al. 2001). In the Jabuka Pit, a layer of dense bottom water can in some years persist over longer periods (Artegiani et al. 2001). Resuspended sediments, which circulate inside the enclosed water mass within the depression, would possibly decrease light intensity under the light compensation point of the algae. It was pointed out in other parts of the Mediterranean that frequent trawling might influence L. rodriguezii (UNEP/IUCN/GIS Posidonie 1990; Joher et al. 2012), but the disappearance of L. rodriguezii from Jabuka and Biševo is up to now the greatest reported decline of this species. The area of Palagruža is not an intensive trawling area like Jabuka (IOF, unpublished data) but still has important commercial fishing activity. Moreover, the locations where L. rodrigueziiwas recently reported by fishermen, observed and collected by ROV and grab (Fig. 1c), correspond to an area where trawling is not allowed (minimum 2 nautical miles from the Island) and only small scale fishing like trammel nets is performed. In addition, strong bottom currents in the Palagruža may allow fast removal of fine sediment dispersed in bottom water due to bottom trawling, and possibly also clean the surface of thalli from deposited sediments. The historical records of L. rodriguezii at Jabuka, at 150–260 m depth, were the deepest of that species in the entire Mediterranean. Such a depth is in the range of the deepest records of seaweeds worldwide (Littler et al. 1985; Markager and Sand-Jensen 1992). Sporadic findings of the alga in the Palagruža area during MEDITS surveys during the last 14 years were also in the depth range between 170 and 200 m. Collected specimens did not have hold-fasts, thus it is not possible to conclude with certainty whether they were attached or just dispersed fragments. Bottom currents of 50 cm s−1 might be sufficient for proper fragment drifting. However, according to data provided from ADCP, bottom currents with E–SSE directions (Fig. S6) could not transport fragments from Palagruža Island to locations where L. rodiguezi was collected during MEDITS campaigns (Fig. 1b; 10–30 km in N–NE direction). Anyway, depths reported by earlier studies based on bottom trawling surveys must be considered with a certain caution. Without direct observation by ROV, exact data on light intensity on the bottom and ideally supporting, ecophysiological experiments, we cannot be sure that L. rodriguezii can develop at such extreme depth. The lower depth limits for kelp is assumed to be at 1 % of surface irradiance (Lüning and Dring 1979); however, this may not apply for L. rodriguezii. Secchi values measured in the last 15 years were around 20 m, with a maximum of 30 m. Such surface values of transparency only might be indicative and indeed reveal no information about the light intensity reaching the bottom. Giaccone (Giaccone 1967) noted how Secchi disks were visible up to 35 m near the island of Ustica (Italy) where L. rodriguezii populations occurred between 45 and 85 m depth. At 85 m, the seabed at Ustica was too steep and formed an environment with low luminosity that did not allow life of photosynthetic organisms. The locations where the alga was collected near Palagruža and historically at Jabuka are mostly flat, and therefore probably allow development of the alga at greater depth (no shading effect) even if the transparency is equal. Similar to the Palagruža site, costal detritic bottoms occur in Spain, where L. rodriguezii has been mainly reported between 70 and 80 m, with a maximum at 95 m (Joher et al. 2012; Sergi Joher Sais pers. comm.).

There is not much information on oceanographic conditions prevailing in the locations of other populations of L. rodriguezii in the Mediterranean. However, most reports suggest that favourable conditions include a hard coralligenous or rhodolithic substratum, dim light, highly transparent open sea water due to very low abundance of suspended particles, water temperatures permanently below 15 °C, and constant, mostly unidirectional weak to strong currents (Ercegović 1960; Giaccone 1967; UNEP/IUCN/GIS Posidonie 1990; Bellan-Santini et al. 2002). This study presents for the first time precise long-term measurements of temperature, currents, salinity and nutrients in the bottom seawater in the documented distribution range of L. rodriguezii. Seawater temperature is almost constantly around 14 °C with temperature extremes slightly above 15 °C and below 12 °C being a very rare occurrence over 60 years of seasonal measurements (Fig. S4). Current measurements from the ADCP station close to Palagruža showed that bottom currents were relatively strong and very stable. The strong bottom current in the area is the result of formation and sinking of cold and dense North Adriatic Dense Water (NAdDW) formed in the North Adriatic shelf and coastal area (Mihanović et al. 2013). One of the two major pathways of the NAdDW from the shallow northern Adriatic shelf and Jabuka Pit to the deep South Adriatic Pit is located to the north of Palagruža (Vilibić et al. 2004; Janeković et al. 2014). Predominant flow directions measured at the ADCP station were between east and southeast, corresponding to the northern pathway of the NAdDW outflow across the Palagruža Sill. The NAdDW formation event that occurred in January/February 2012 was exceptional and bottom density currents between March and June 2012 were particularly intense. Still, even after that period, weaker but persistent bottom currents, flowing mostly towards E–SE were observed in the area, till the end of measurements in December 2012 (Fig. S7). Both current and temperature measurements corroborate the global perception how persistent and stable currents and low temperatures play important roles in the formation of favourable condition for the development of L. rodriguezii. Therefore, NAdDW outflow with both strong currents and low and relatively stable temperatures is probably essential for the development of L. rodriguezii in the Central Adriatic. It thus appears that presence of L. rodriguezii in the Adriatic Sea coincides with oceanographic conditions that differ from the upwelling of cold waters at deep water kelp sites in tropical regions (Graham et al. 2007).

Total inorganic nitrogen, orthophosphate and orthosilicate concentrations in the bottom layer (Table 3) were generally higher than in the surface or middle layer of the water column (Vilibić et al. 2012), due to remineralization processes from the sediment or to advective mixing of water masses from the Mediterranean. Increased TIN concentrations are particularly expressed during the summer season (Barić et al. 2002), as a consequence of more intensive nitrogen flux from sediment that can be an additional source of nutrients facilitating algal growth. Laminaria rodriguezii has a disjunct distribution within the Mediterranean Sea. The population in the Adriatic Sea, although genetically similar according to ITS sequences (see below), does not seem to be connected to the populations in the Western Mediterranean, since there are no intermediate populations known. Long distances from the next populations and adverse water mass circulation probably inhibit transport of any reproductive phase. Natural reintroduction in the case of total regional extinction in the Adriatic Sea is therefore not possible. The IUCN Red List criteria are commonly used for evaluating the extinction risk of species (IUCN 2012). However, applying these to macroalgae is not simple and there are only a few seaweed species in the world on which they have been applied (Brodie et al. 2009; Phillips and Blackshaw 2011), basically due to lack of information on historical and recent distributions and the species’ biology and ecology. Except for the present comparison of historical and recent records, this also applies to L. rodriguezii in the Adriatic. There is still limited knowledge on its biology, population density and exact distribution as well as changes of the last two over exact periods of time, which are relevant criteria for IUCN evaluation. However, such data are clearly very difficult to obtain for such a relatively inaccessible species. In the light of the drastic decline of more than 85 % of the extent of occurrence in the Adriatic, which is estimated to be nowadays around 1200 km2, and its disappearance in two of three historical distribution areas (Jabuka Pit and Biševo Island area), as well as still ongoing, strong bottom trawling activities (UNEP/CBD/EBSA/WS 2014), we propose that L. rodriguezii should be classified as “Endangered” under IUCN criteria B1ab(i,iii,iv), ver 3.1.in the Adriatic Sea.
A management plan should therefore be developed in order to enable maintenance of L. rodriguezii in the area of Palagruža Island, its last refuge within the Adriatic. Similar measures were proposed for an area with L. rodriguezii populations in the Menorca Channel (Barbera et al. 2012). The decline of canopy-forming species, especially those in shallow waters, is an expanding, worldwide trend, largely due to different human activities while only sporadic local actions are taken to remedy this situation (e.g. Thibaut et al. 2015; Yesson et al. 2015, and references therein). Further ROV expeditions should be organized with the objective of not destructively quantifying the abundance of L. rodriguezii and to establish detailed parameters for a further monitoring program. The greatest risk for the species appears to consist in continued bottom trawling. Temperature increases in Mediterranean deep water may represent another threat. The distribution of shallow water kelp species was reported to react rapidly to small changes in seawater temperatures, possibly due to temperature requirements for reproduction (Bartsch et al. 2013). On the other side, Yesson et al. (2015) showed that temperature alone can not account for long-term increases and decreases in abundance of the large brown seaweeds observed around the British Isles and suggested a combination of both physical and biological factors as drivers of these changes. Therefore, the possible future impact of seawater temperature increase on deep water L. rodriguezii must remain speculative, as there are no ecophysiological data on growth and reproduction of this species. So far, long-term measurements of sea bottom water in the Palagruža area have not shown any statistically significant temperature increase (Vilibić et al. 2012).

Sequence similarity in a highly variable part of ITS and the Rubisco spacer between our Croatian and Italian samples of L. rodriguezii suggested that there may not be much genetic differentiation between individuals from the two sites. The sequences of all markers confirmed that L. rodriguezii belongs to the Laminariaceae, which is at present (Guiry and Guiry 2015) understood as a clade formed by the type L. digitata and about 20 other species, including all Atlantic kelps with digitate blades, such as L. hyperborea, L. ochroleucaand L. pallida. According to the sequences studied, particularly ITS, L. rodriguezii is closely related to a clade formed by L. ochroleuca, L. pallida and L. abyssalis. Our sequences suggest that adaptation to deep water in L. rodriguezii and L. abyssalis possibly evolved independently and that the two are different species, which is born out by the fact that the adventive blades characteristic for L. rodriguezii are absent in L. abyssalis. However, these are preliminary data from three markers and few individuals. A more comprehensive phylogeographic hypothesis for L. rodriguezii would require sequences for several markers from replicate individuals from different populations of the two deep-water species as well as of all Atlantic kelp taxa. It is unknown if L. rodriguezii can cross with the members of the AOP clade; cross-fertility has been shown experimentally for L. pallida and L. abyssalis (Dieck and De Oliveira 1993). It is urgent to isolate gametophyte cultures of L. rodriguezii in order to study genetics and physiology of this impressive species.

laminaria-rodriguezii2

Conclusion
Comparison of historical and recent data on the distribution L. rodriguezii showed that according to IUCN criteria, the extent of occurrence of this deep water species within the Adriatic Sea has been drastically reduced by more than 85 % (from 8700 to 1200 km2). The most probable reasons for its disappearance are direct and indirect impacts of trawling (physical collecting and decrease of water transparency). Taking into account the IUCN criteria, we propose that this species is classified as “Endangered” under IUCN criteria B1ab (i,iii,iv), ver 3.1. in the Adriatic Sea. A management plan should therefore be developed to enable maintenance of L. rodriguezii in the area of Palagruža Island, which according to the data presented here is its last refuge within the Adriatic and the East part of the Mediterranean Sea.


Did you like this article? Please make a small donation to support our portal for supporting our expenses for maintaining OCEAN4FUTURE, the Sea and Maritime portal. The donation may be once or you can decide to pay as much as you want every month. Note, to donate safely, click on the DONATION link or write to us for help at the email: infoocean4future@gmail.com
.

PAGINA PRINCIPALE - HOME PAGE
.
PARTE I PARTE II
.

Acknowledgments as in The Mediterranean deep-water kelp Laminaria rodriguezii is an endangered species in the Adriatic Sea | Marine Biology (springer.com)



Supplementary material 227_2016_2821_MOESM1_ESM.pdf (1.4 mb)

Copyright information © The Author(s) 2016

Open Access
This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
.
